Albér BCT-2000 tests any size string up to 256 cells, performs constant current capacity and power capacity tests, supports UPS testing using AC load banks, and supports run-down testing using system load.
This course provides the student with the fundamentals of capacity testing based on the IEEE 1188 and IEEE 450 standards then educates students on proper use of the Alber BCT-
2000 Capacity Tester.

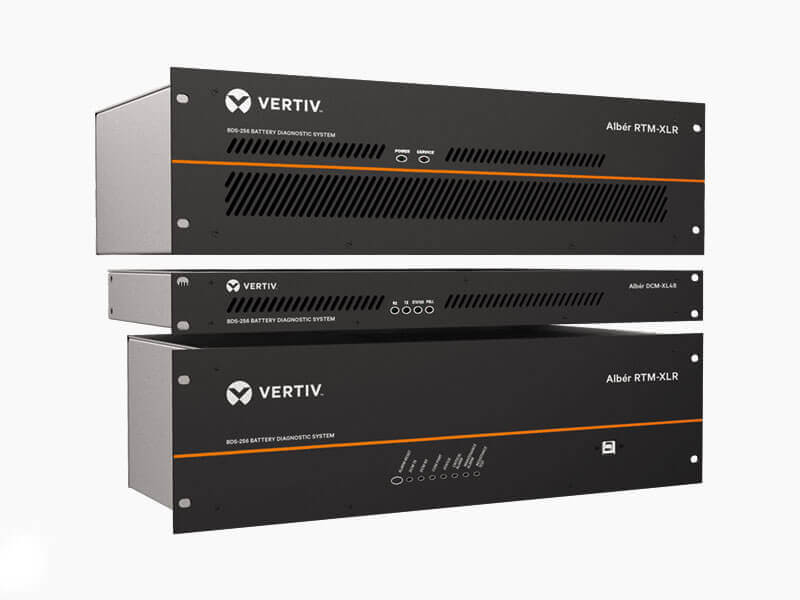

The BDS–256XL is a stand–alone battery monitor for UPS applications. It monitors 2V-16V batteries, however is optimized to monitor 2V VLA cells. What sets Vertiv monitors apart from others is their ability to provide early warning of battery problems. The monitors check the state of health of each cell by performing a proactive resistance test, a reliable predictor of battery performance.
Designed in accordance with the institute of Electrical and Electronics Engineers (IEEE) recommendations for battery monitoring, the Alber BDSUi and BDSU-50 Battery Monitoring Systems are ideally suited for 12 and 16 volt sealed batteries. The monitoring system provides detailed battery information, optimizing useful battery life. Instead of waiting for the inevitable failure, you can continue to utilize your batteries longer and with confidence by knowing their true state of health.
The Cellcorder™ CRT-400 Cell Resistance Tester is specially designed to strictly comply with IEEE standards for testing batteries. The Cellcorder is capable of performing voltage, internal cell resistance, intercell connection resistance and float voltage measurements on 1V cells to 16V modules. This rugged, portable unit comes complete with all the accessories, in one carrying case, to get started.

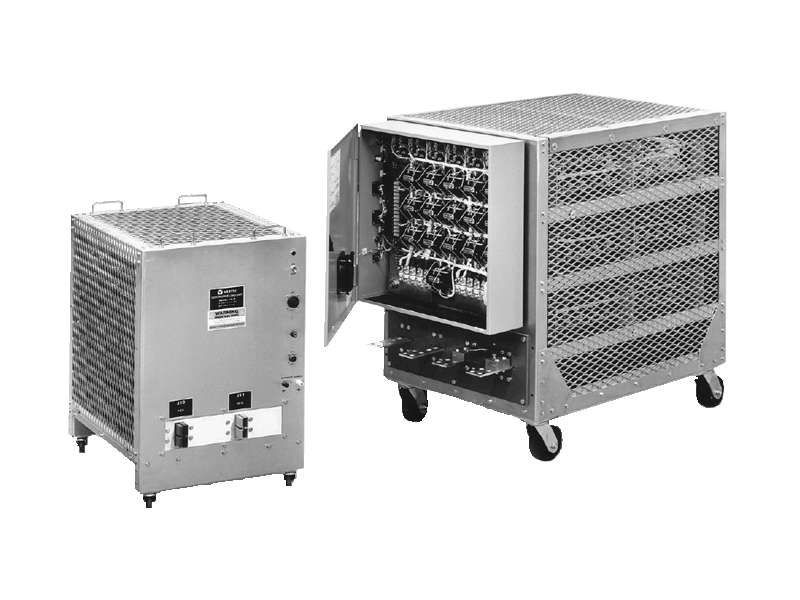

The Continuous Load Unit provides the load during a capacity test and can be used with the BCT-2000, the BDS-256XL monitor or as a standalone with the Manual Control Box. Load Units are configured for 120V or 240V AC inputs. Design of the resistance elements enable small increment load adjustments through the entire capacity test.

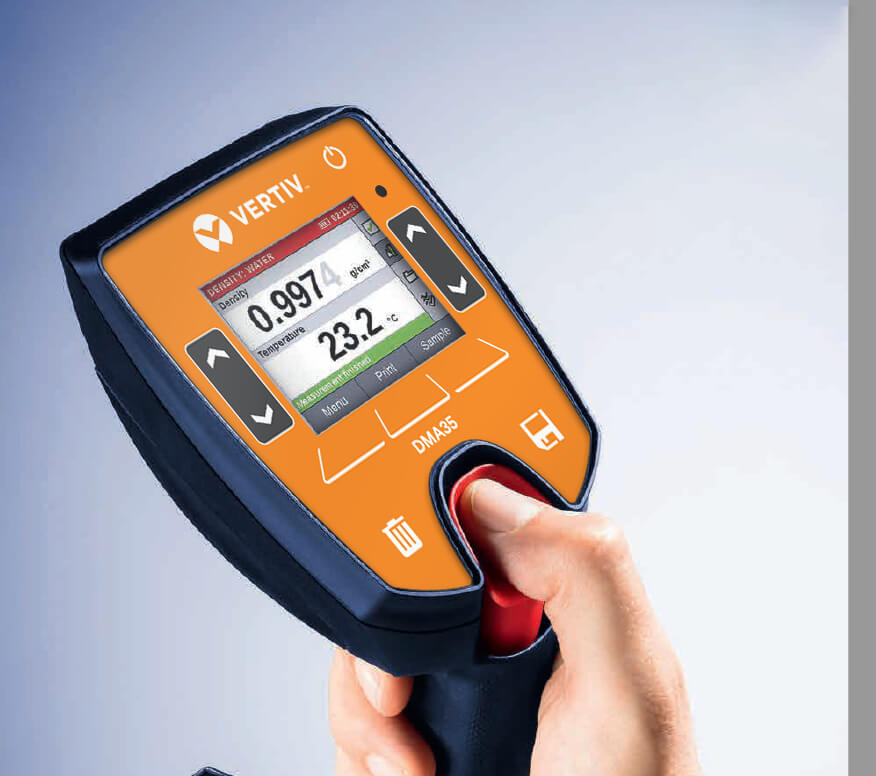

The DMA35 is a handheld, stand-alone digital specific gravity and electrolyte temperature meter suitable for use in demanding industrial environments. Save time and cost by automating the collection and reporting processes for hydrometer readings.
The ELS2 Electrolyte Level Sensor is a non-invasive level sensor with incorporated temperature monitoring designed for quick installation and easy set up. This system complies with the NERC PRC-005 requirements for electrolyte level inspection. With this sensor, you eliminate unnecessary remote site visits and will eliminate the required quarterly inspection of battery electrolyte level in your battery string.
Battery Monitoring Software

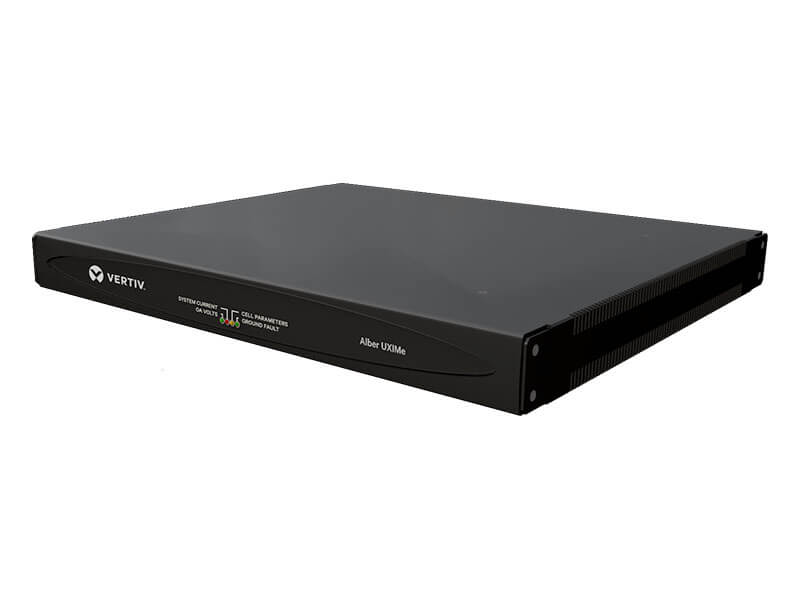

The Alber Universal Xplorer Industrial Monitor (UXIME) is a stationary, real time battery monitor for use in Utility Bulk Power and Industrial applications. Standard configurations specifically designed for 120V and 48V batteries make it ideal for NERC compliance.

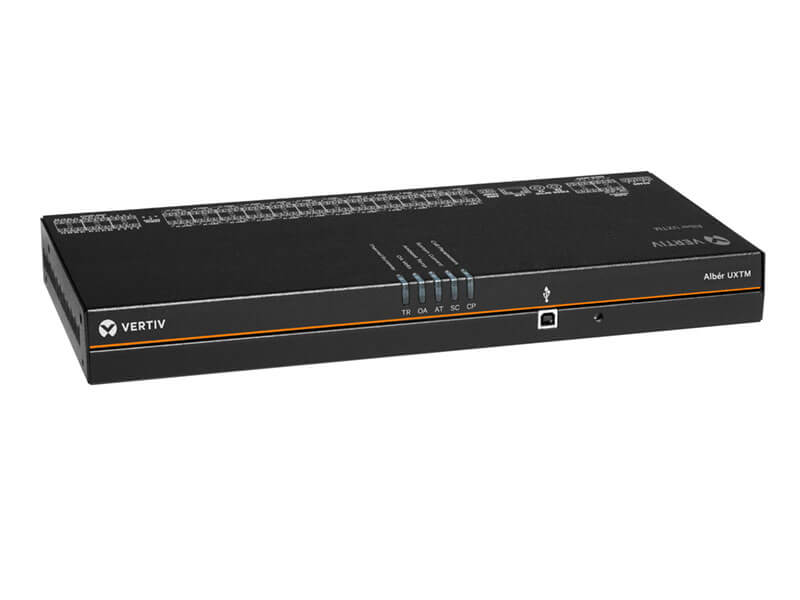

The Universal Xplorer Telecom Monitor (UXTM) is a stationary battery monitor designed for use in telecommunications or in DC powered data centers. The system architecture is a flexible design for monitoring virtually any battery configuration using VLA, VRLA or NiCd technologies in 24 to 48VDC applications.
View the whole line of Discontinued Albér Battery Monitoring products that we support.
